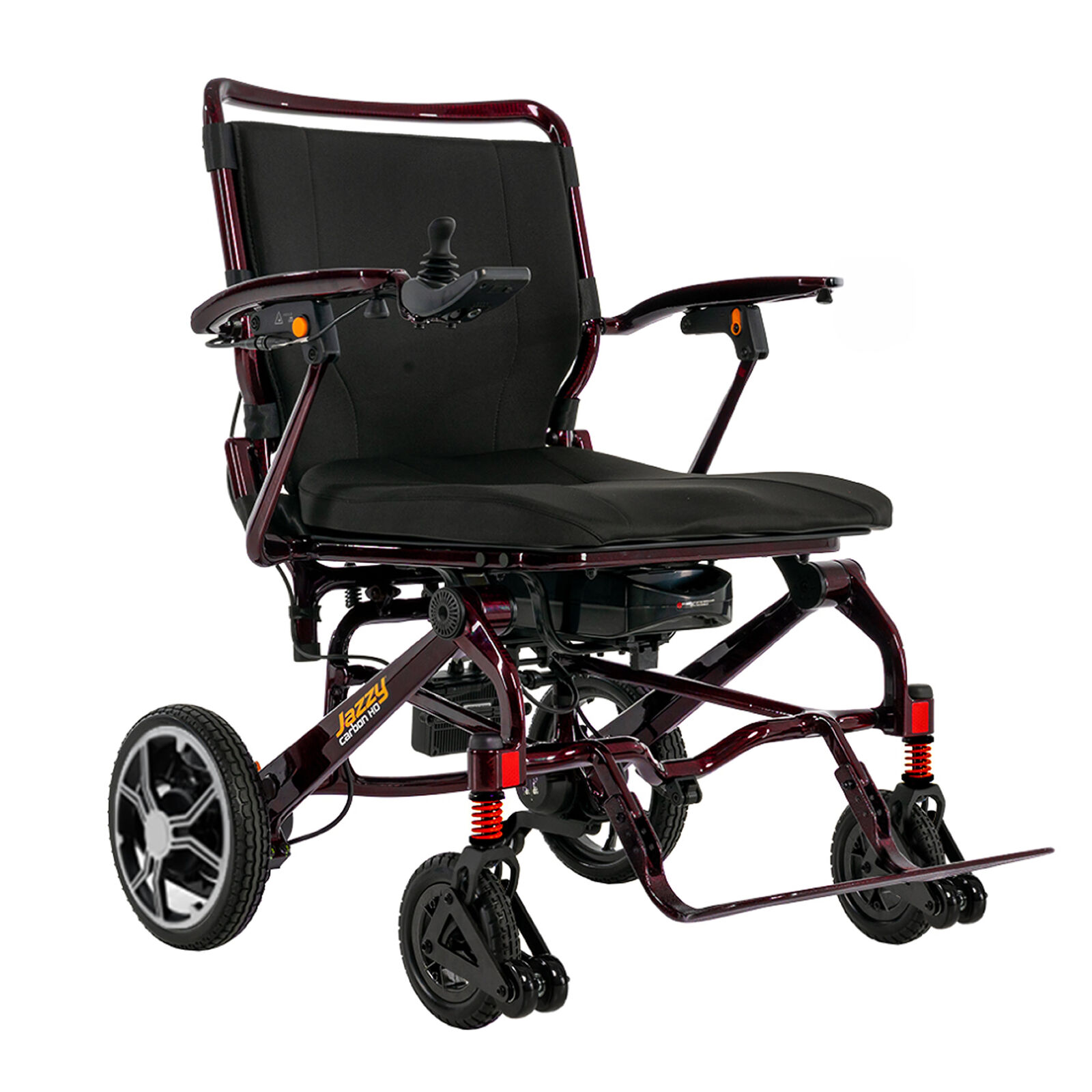

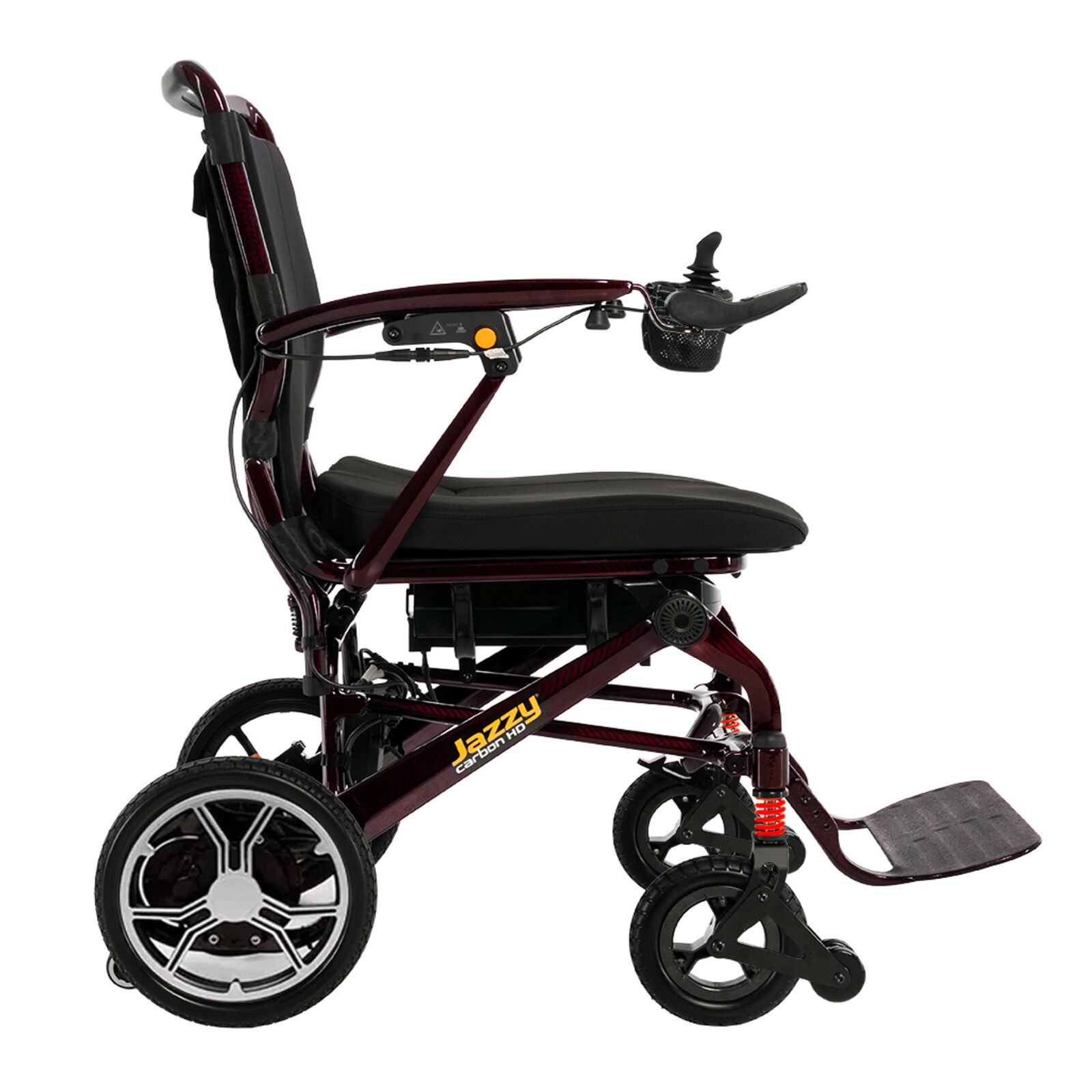

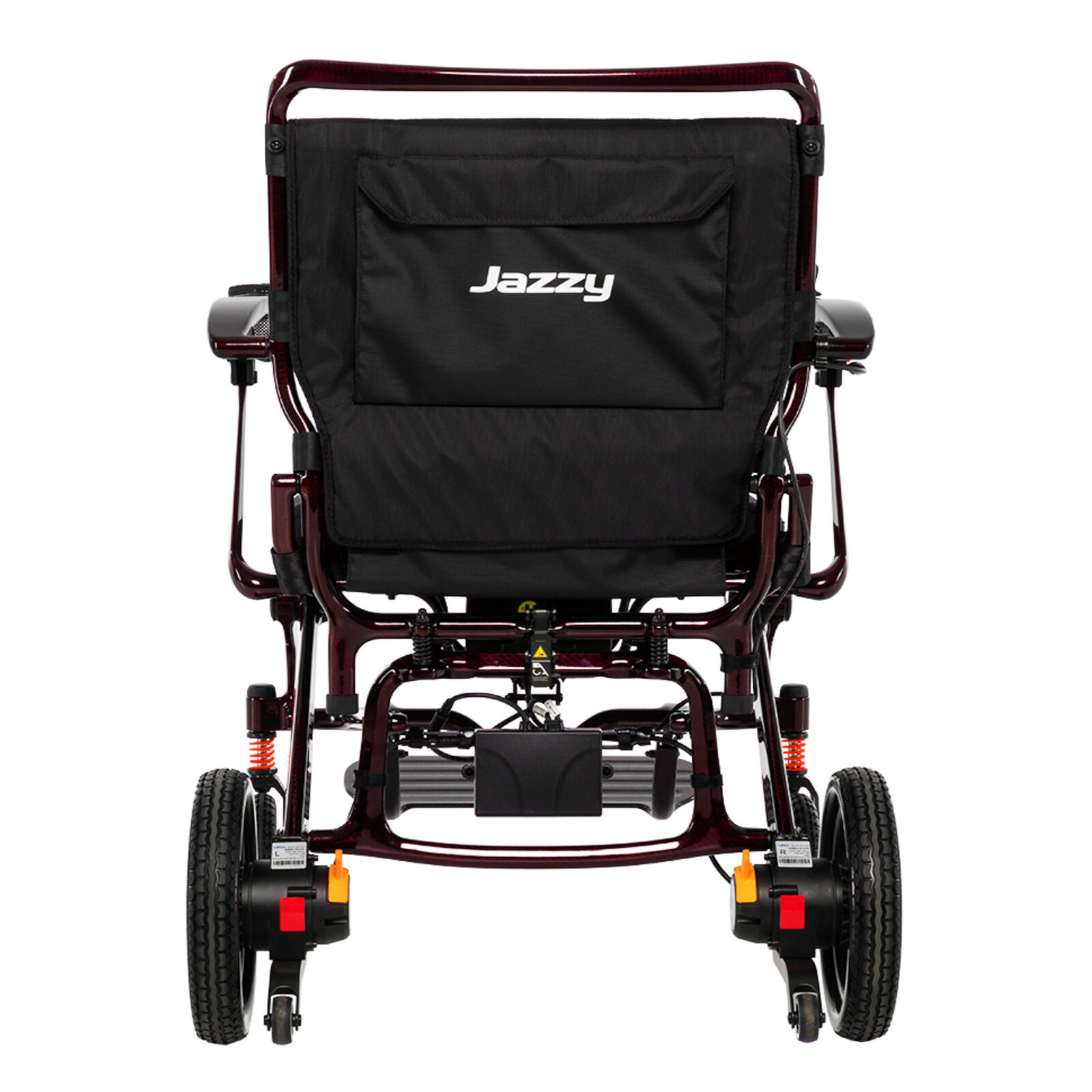

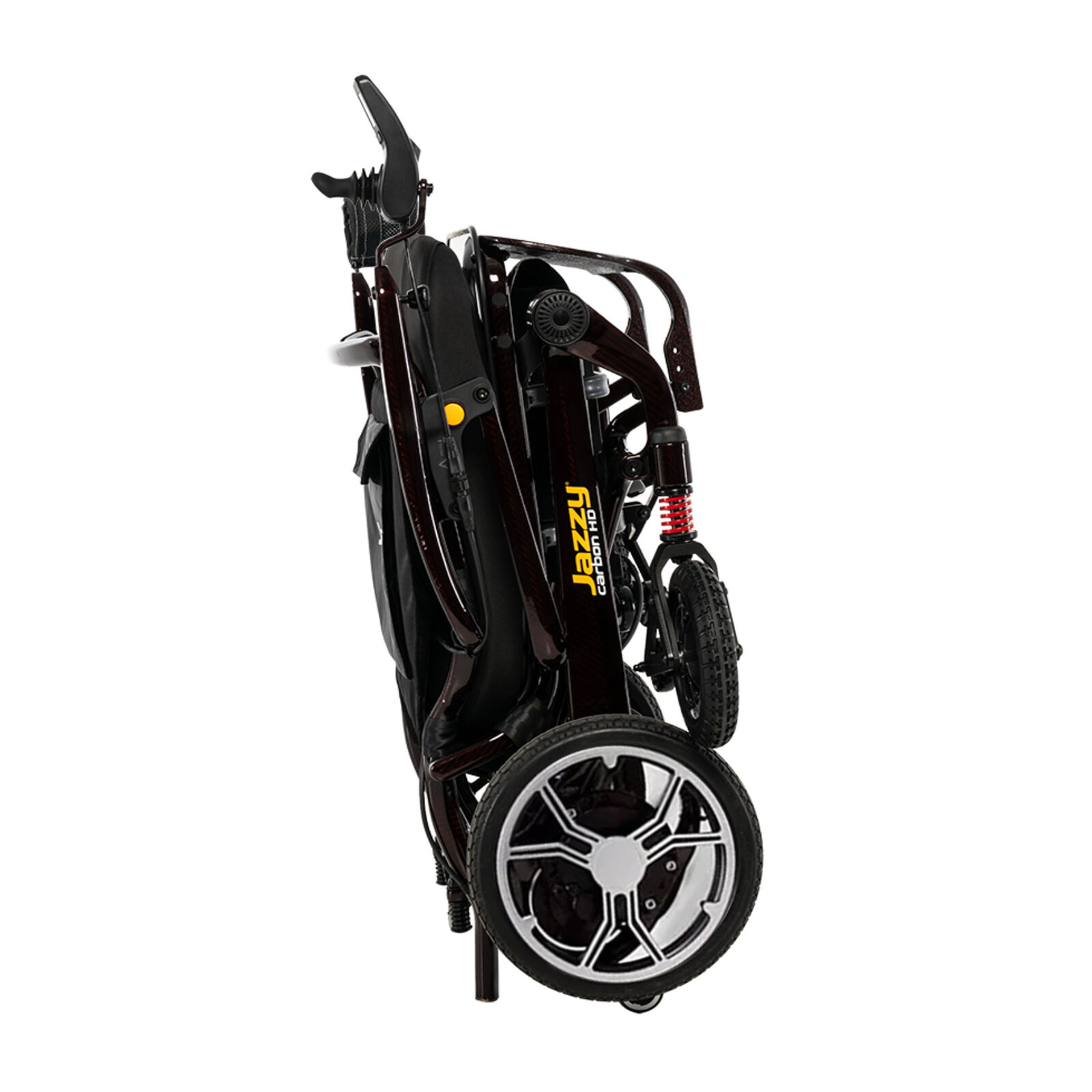

The Jazzy Carbon HD addresses a significant clinical gap for users who require a high weight capacity of up to 181 kg combined with a device light enough to transport without specialist equipment. Full front and rear suspension reduces vibration transmission during community use, supporting users managing back pain, joint sensitivity, or fatigue-related conditions. The wide 20″ padded seat and extra-wide foot platform provide the postural comfort and skin integrity support needed for extended daily use, while the 14.2 kg frame allows carers and family members to assist with vehicle loading without a hoist or modified transport.

Range Per Charge

Up to 20 km

Maximum Weight Capacity

181 kg

Turning Radius

92.5 cm

Maximum Speed

6 km/h

Length & Width

L: 93.5 cm W: 67 cm

Weight Of Heaviest Piece

14.6 kg

Seat Size Width and Depth

W: 51 cm x D: 51 cm (20"x20")

Ground Clearance

2.5 cm (at motor)

High Back Seat To Floor Range

   48 cm fixed

Standard Electronics

YT Control

Drive Train

Two-motor, rear-wheel drive

Braking System

Regenerative & electro-mechanical

Front Tyres

6.5" solid castors

Drive Wheels

10.6" solid

Battery Requirements

(1) 20Ah, 24V (lithium-ion, 436.8Wh)

Battery Charger

Off-board, 2A (lithium-ion)

Battery Weight

3.4 kg

Colour Options

Cherry Black Carbon

Suspension

Full front and rear suspension

SKU: (JAZZYCARBONHD)

SKU JAZZYCARBONHD
Brand Pride Mobility
